測砧和測微螺桿的端面為薄片型，可用于測量花鍵軸、鍵槽等不易測量位置的凹槽尺寸。
測砧和測微螺桿的端面為薄片型，可用于測量花鍵軸、鍵槽等不易測量位置的凹槽尺寸。
| 貨號 | 測量范圍 | 分辨力 | 精度 * | 備注 |
| 數顯型 (LCD) |

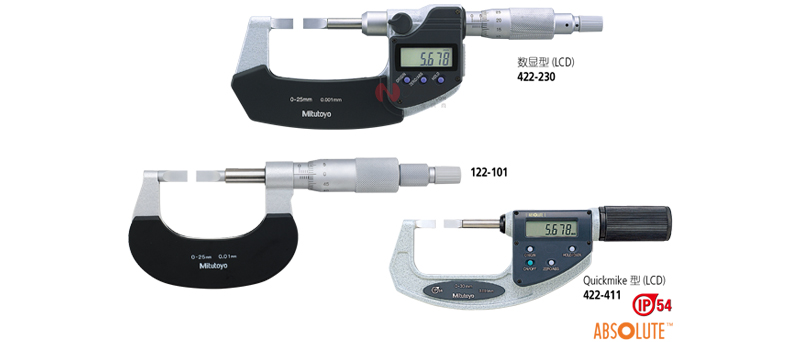

| 422-230 | 0 - 25mm | 0.001mm | ±3μm | A 型 |
| 422-231 | 25 - 50mm |
| 422-232 | 50 - 75mm |
| 422-233 | 75 - 100mm | ±4μm |
| 422-260 | 0 - 25mm | ±3μm | B 型 |
| 422-261 | 25 - 50mm |
| 422-270 | 0 - 25mm | C 型 |
| 422-271 | D 型 |
| 貨號 | 測量范圍 | 分辨力 | 精度 * | 備注 |
| 數顯型 (LCD) |
| 422-411 | 0 - 30mm | 0.001mm | ±3μm | A 型 |
| 422-412 | 25 - 55mm |
| 貨號 | 測量范圍 | 分度值 | 精度 | 備注 |
| 普通型 |

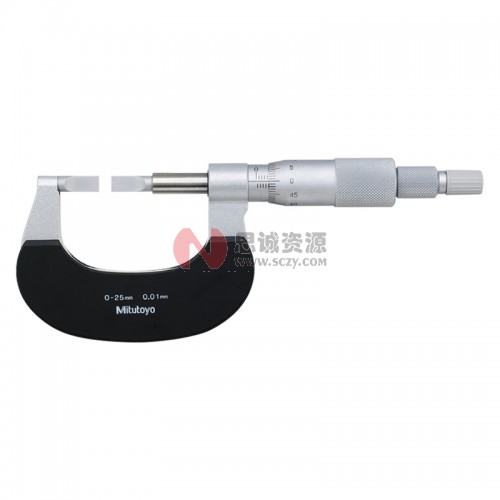

| 122-101 | 0 - 25mm | 0.01mm | ±3μm | A 型 |
| 122-102 | 25 - 50mm |
| 122-103 | 50 - 75mm |
| 122-104 | 75 - 100mm | ±4μm |
| 122-105 | 100 - 125mm |
| 122-106 | 125 - 150mm |
| 122-107 | 150 - 175mm | ±5μm |
| 122-108 | 175 - 200mm |
| 122-109 | 200 - 225mm |
| 122-110 | 225 - 250mm | ±6μm |
| 122-115 | 250 - 275mm |
| 122-116 | 275 - 300mm |
| 122-111 | 0 - 25mm | 0.01mm | ±3μm | B 型 |
| 122-112 | 25 - 50mm |
| 普通測微螺桿(帶硬質合金頭) | 0.01mm | ±3μm | C 型 |
| 122-161 | 0 - 25mm |
| 122-162 | 25 - 50mm |
| 122-141 | 0 - 25mm | 0.01mm | D 型 |
| 122-142 | 25 - 50mm |
| 測量范圍 | a | b | C | d |
| 0 - 25mm | 11 | 31 | 12.5 | 65.6 |
| 25 - 50mm | 12.2 | 50 | 12.6 | 90.7 |
| 測量范圍 | a | b | C | d |
| 50 - 75mm | 14.6 | 57 | 13 | 104.8 |
| 75 - 100mm | 16.7 | 76 | 16 | 132.8 |

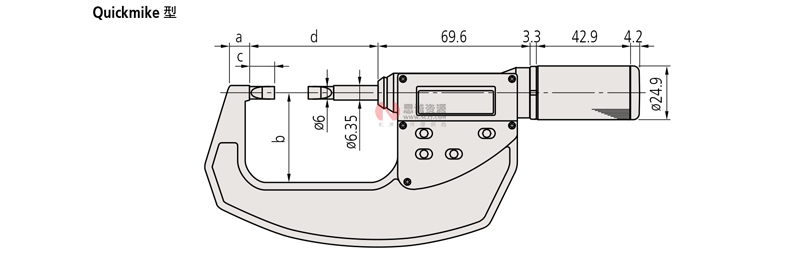

| 測量范圍 | a | b | C | d |
| 0 - 30mm | 8.5 | 36 | 13.5 | 59.8 |
| 25 - 55mm | 10.3 | 47 | 84.8 |

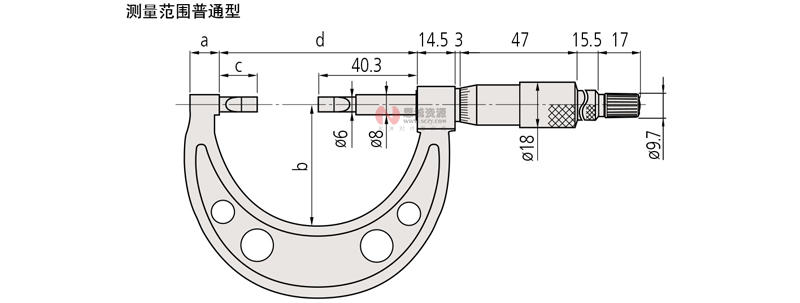

| 測量范圍 | a | b | C | d |
| 25 - 50mm | 12.2 | 49 | 14.5 | 79.8 |
| 50 - 75mm | 14.6 | 60 | 104.8 |
| 75 - 100mm | 17 | 79 | 17.5 | 132.8 |
| 100 - 125mm | 19 | 94 | 17.9 | 158.2 |
| 125 - 150mm | 20 | 106 | 18.3 | 183.6 |
| 150 - 175mm | 19 | 118 | 18.5 | 208.8 |
| 175 - 200mm | 17 | 130 | 18.9 | 234.2 |
| 200 - 225mm | 18 | 143 | 17.7 | 258 |
| 225 - 250mm | 156 | 18.7 | 284 |
| 250 - 275mm | 169 | 309 |
| 275 - 300mm | 181 | 334 |
| 測量范圍 | a | b | C | d |
| 0 - 25mm | 7.8 | 32 | 15 | 55.3 |
